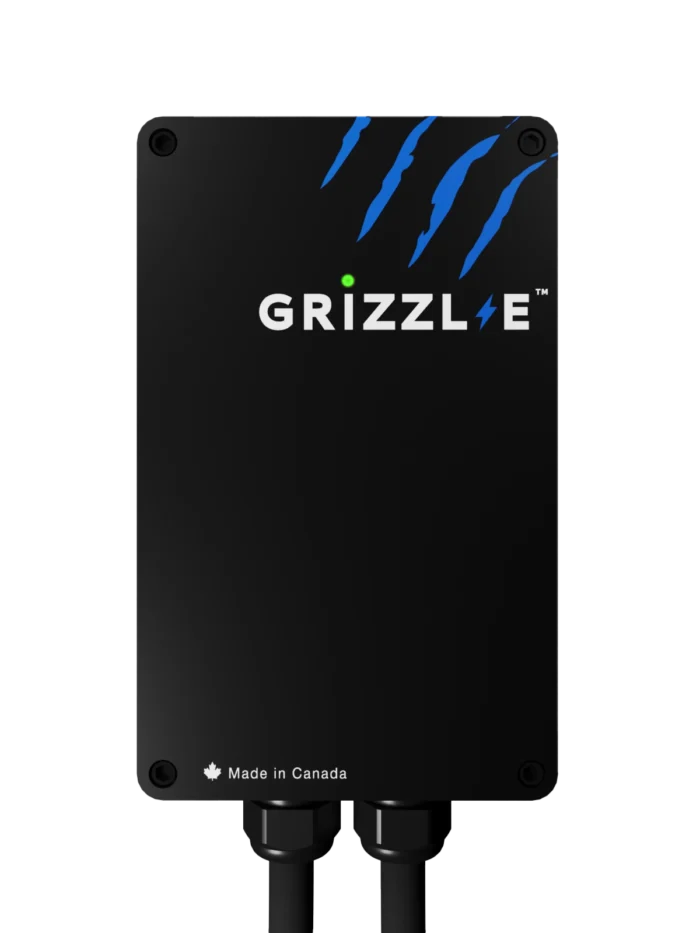

Grizzl-E Classic Connect 40A

Grizzl-E Classic Connect is a 40A plug-in Level 2 EVSE. Available with a J1772 or NACS output cable. Grizzl-E Classic Connect connects to Wi-Fi and the Grizzl-E Connect Application. Take control of your home charging. Connect your charger to your home’s Wi-Fi network to view charging statistics, set a charging schedule, participate in Demand/Response Utility programs, control your charger remotely, and more.

Product Features:
• 3-year replacement warranty.
• MADE IN CANADAEVSE Level AC Level 2
Max Output: Rating 40A; 9.60 kW Maximum Output – For use with 50A Circuit Rating
Adjustable Output Ratings
32A; 7.68 kW Maximum Output – For use with 40A Circuit Rating
24A; 5.76 kW Maximum Output – For use with 30A Circuit Rating
16A; 3.84 kW Maximum Output – For use with 20A Circuit Rating
Charging Connector SAE J1772 or NACS
Charge Cable Length 25 ft. (7.6m)
Electrical Circuit / Input Power Requirements Dedicated 208VAC Single Phase or 240VAC Split Phase, 50/60 Hz.;
Branch Breaker: Double pole;
Circuit Conductors: Line 1, Line 2, Earth/Ground
Input Power Connection Hardwire Connection
Installation Rating UL Type 4 Indoor/Outdoor Rating Indoor/Outdoor Rated
Operational Ratings Temperature: -22°F to 122°F (-30°C to 50°C);
Humidity: 95% RH non-condensing
Overall Dimensions EVSE: 10.25 x 6.25 x 3.75 inches (26.0 x 16.0 x 9.3 cm)
Overall Weight 21lbs (9.5kg)
Connectivity 2.4Ghz Wi-Fi network
Display & Indicators LED Charge Status Indicators (Power/Ready, Charging, Fault)
